Multi-Truss Joist Hanger 47mm x 98mm

SKU: MTH/240/47
Other sizes
98mm
148mm
168mm
226mm
£1.59 Ex VAT
£1.91 Inc VAT

Save up to 5% by signing up
Pay securely with Visa Maestro Mastercard American Express Klarna PayPal

  • Not available for Home Delivery

  • Not available for Click + Collect

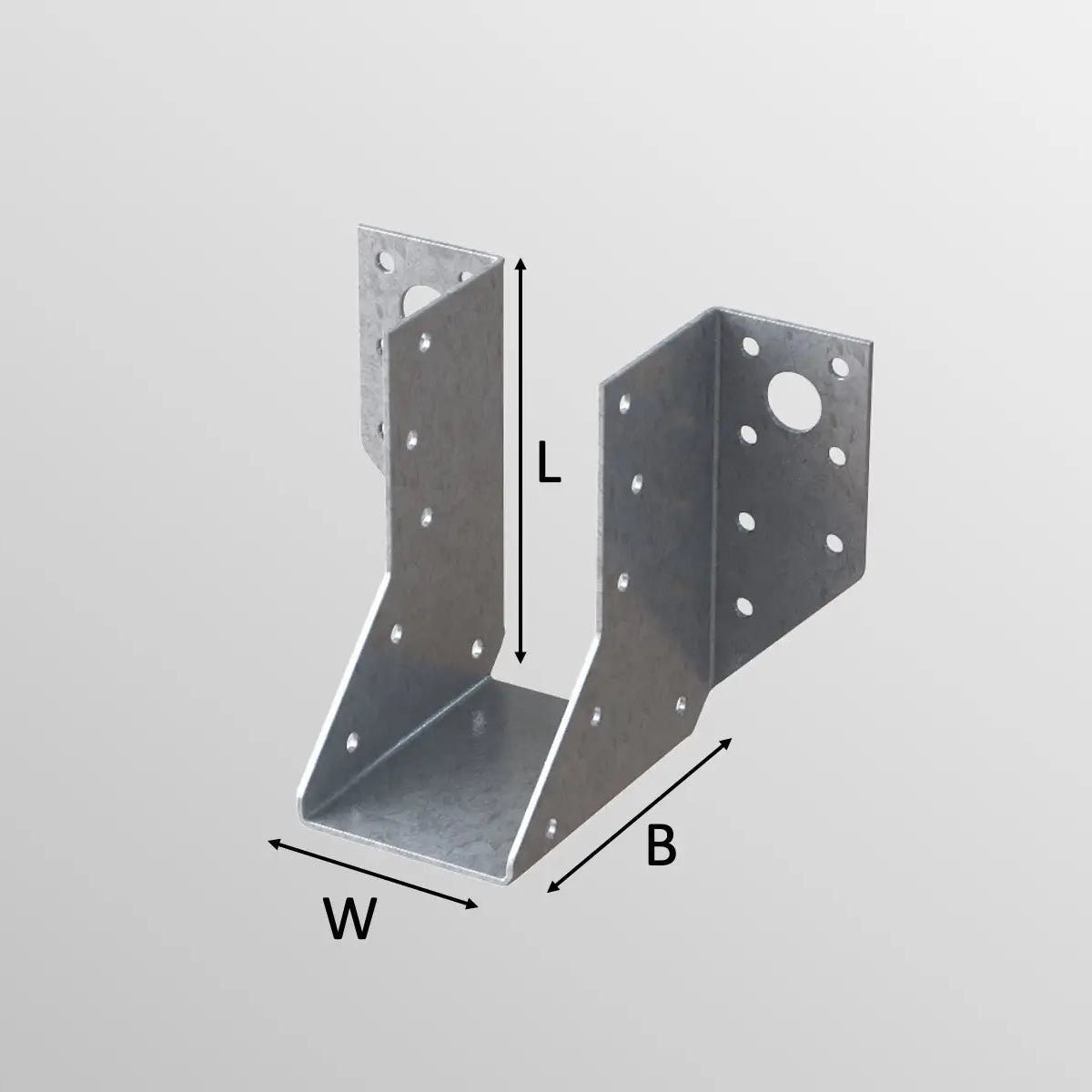

Thickness: 1.5mm

Length: 98mm

Width: 47mm

Bearing: 75mm

Material: Galvanised Steel

Description

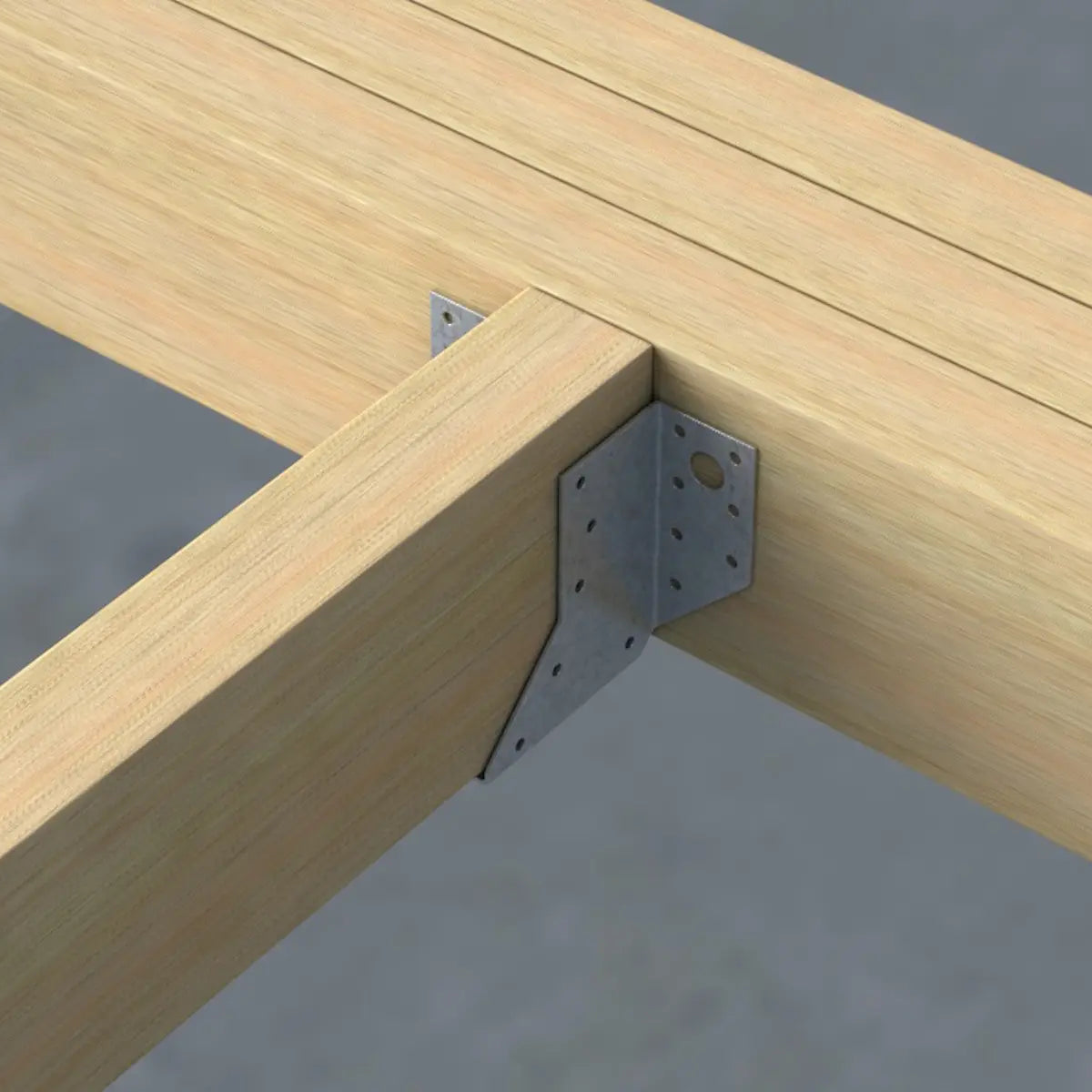

This W 47 x L 98 x B 75mm MTH range of Multi-Truss Hangers is designed for heavy-duty face-fix applications where exceptionally high loads occur, providing a robust solution for supporting multiple trusses from primary girders, purlin-to-beam connections, main trimmer joists, and other demanding structural timber connections.

Suitable for fixing timber to timber, masonry or concrete, the MTH range is engineered for enhanced overall load performance in applications where standard joist hangers are not sufficient.

Manufactured from 1.5mm thick galvanised steel, each hanger features a 75mm bearing surface for reliable load support, 5mm diameter nail holes, and an M12 bolt hole for secure mechanical fixing.

  • Width: 47mm
  • Length: 98mm
  • Bearing: 75mm

Produced as standard from galvanised steel to BS EN 10346:2009 + G275, with stainless steel options available to order for enhanced corrosion resistance.

Features:

  • Designed for heavy-duty structural timber connections
  • Ideal for multiple truss units, trimmer joists and purlin-to-beam applications
  • Suitable for fixing to timber, masonry or concrete
  • High load performance for demanding structural conditions
  • 75mm bearing surface for improved support
  • M12 bolt hole for secure mechanical fixing
  • Face-fix design for quick, reliable installation

Material

  • Manufactured from 1.5mm thick galvanised steel to BS EN 10346:2009 + G275 as standard
  • Stainless steel versions available to order

Fixing

Fix using all pre-punched holes with either of the following:

Type A

  • 30mm x 3.75mm Sherardised Square Twist Nails
  • Typically supplied loose for manual fixing

Type B

  • 35mm x 3.75mm Sherardised Square Twist Nails
  • Typically supplied collated for nail gun fixing

Use the M12 bolt fixing in conjunction with specified nails to achieve full structural performance.
