Description
Description

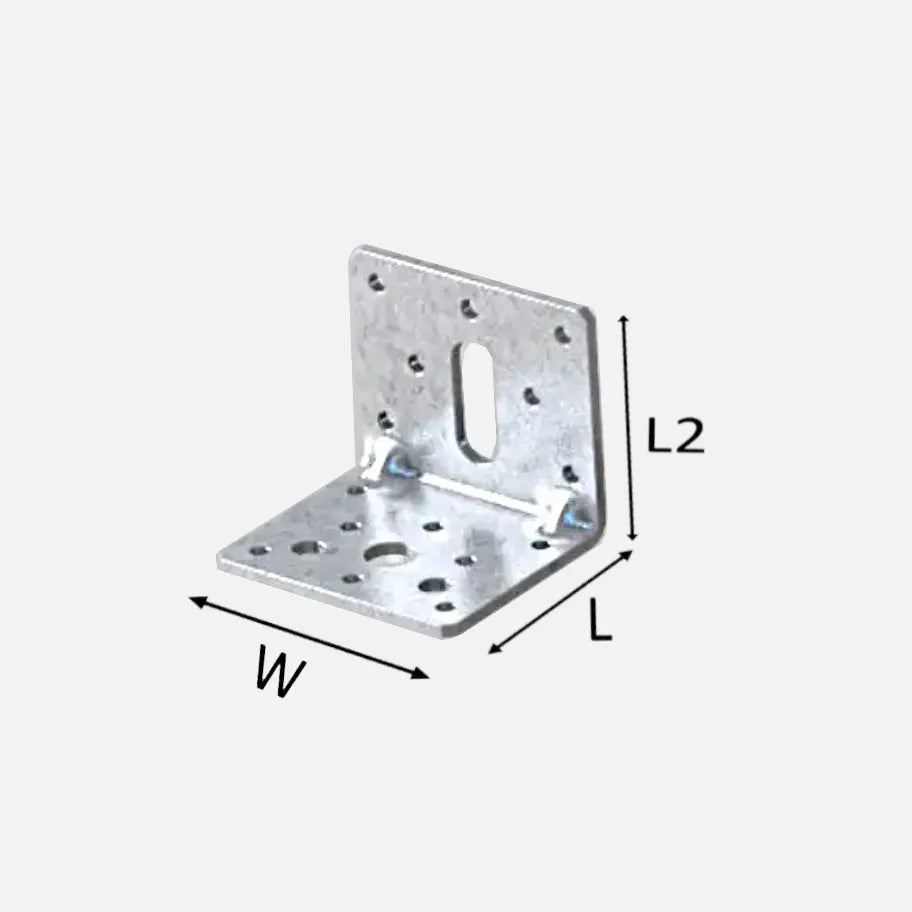

This L 50 x L2 50 x W 60mm AB Angle Bracket is a versatile, reinforced fixing designed for structural 90° timber connections. Suitable for use with nails, screws, bolts, and coach screws, it provides a strong and reliable connection across a wide range of timber construction applications.
As a three-dimensional nailing plate for timber-to-timber connections, the AB Angle Bracket is designed for structural applications in accordance with ETA-20-0915. Please refer to ETA-20-0915 for the intended use and application requirements.

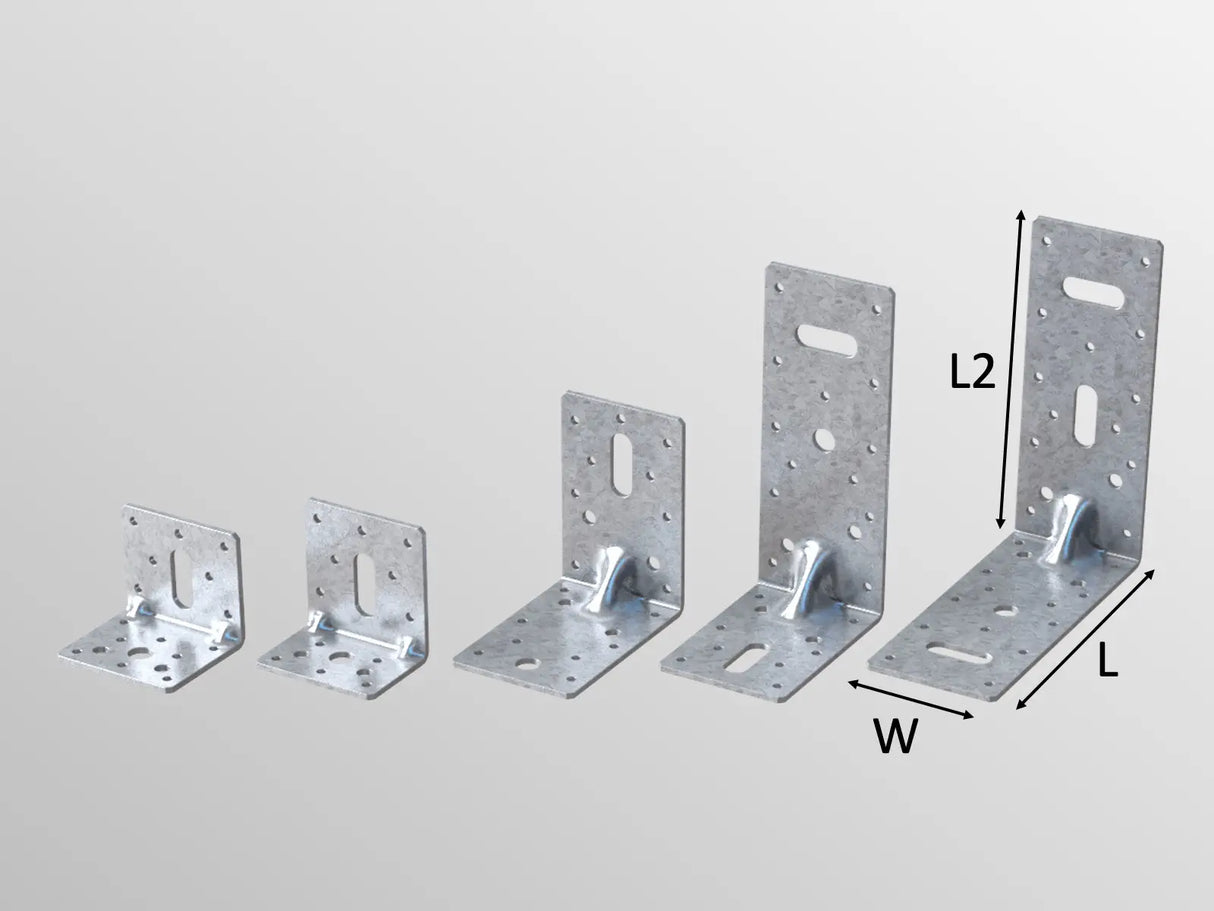

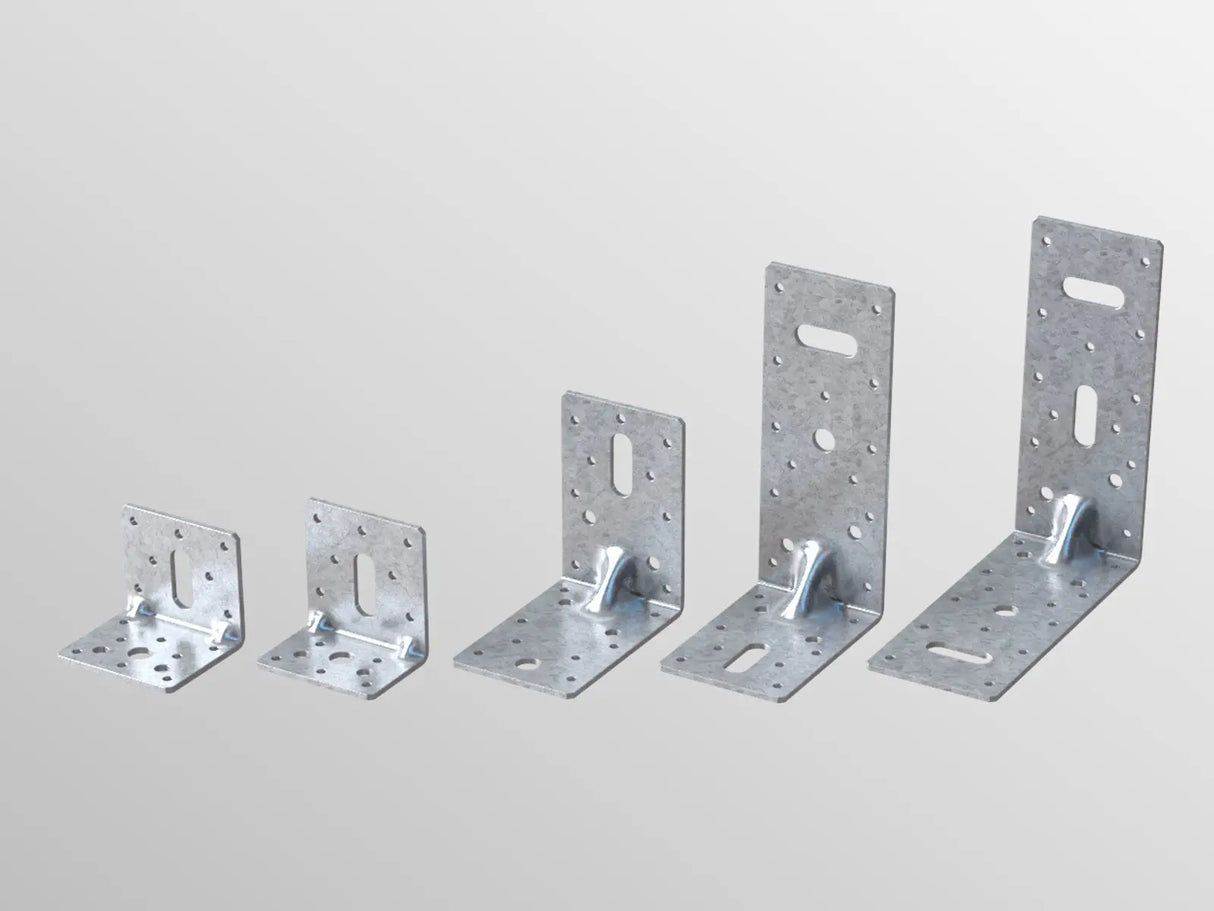

Featuring an integral stiffening rib for added strength and multiple pre-punched fixing holes for flexible installation, the AB Angle Bracket is available in a range of sizes to suit various project requirements.
Material
- Manufactured from 2.5mm thick galvanised steel to BS EN 10346 + G275 as standard.
- Stainless steel Grade 304 austenitic to BS EN 10088-2 Grade 1.4301 available from stock in all sizes.
Fixing
Fix using either Type A or Type B fixings in all pre-punched holes:
- Type A: 30mm x 3.75mm Sherardised Square Twist Nails (typically supplied loose for manual fixing)
- Type B: 35mm x 3.75mm Sherardised Square Twist Nails (typically collated for nail gun fixing)
Features
- Suitable for 90° structural timber connections
- Three-dimensional nailing plate for timber-to-timber applications
- Reinforced with integral stiffening rib
- Multiple pre-punched fixing holes
- Compatible with nails, screws, bolts, and coach screws
- Available in various sizes
Approvals
- CE Marked
- UKCA Marked
- Designed in accordance with ETA-20-0915
